Barcus Berry 3110 Piezo Violin Pickup with Preamp

Designed for violinists who need dependable performance without a permanently installed transducer. This piezo transducer clamps easily to the violin bridge and connects, via cable, to the included 3100P output jack. No holes to drill or tools required. The best of both worlds – ease of use plus wide-band frequency response, excellent string balance, feedback rejection and outstanding signal isolation.

Features & Benefits

• Offers wide band frequency response and excellent string balance.
• Feedback rejection feature provides excellent signal isolation for clear, true reproduction of the violin’s sound.
• Clamps easily onto the violin’s bridge without additional tools or holes to drill making attachment and removal a breeze.

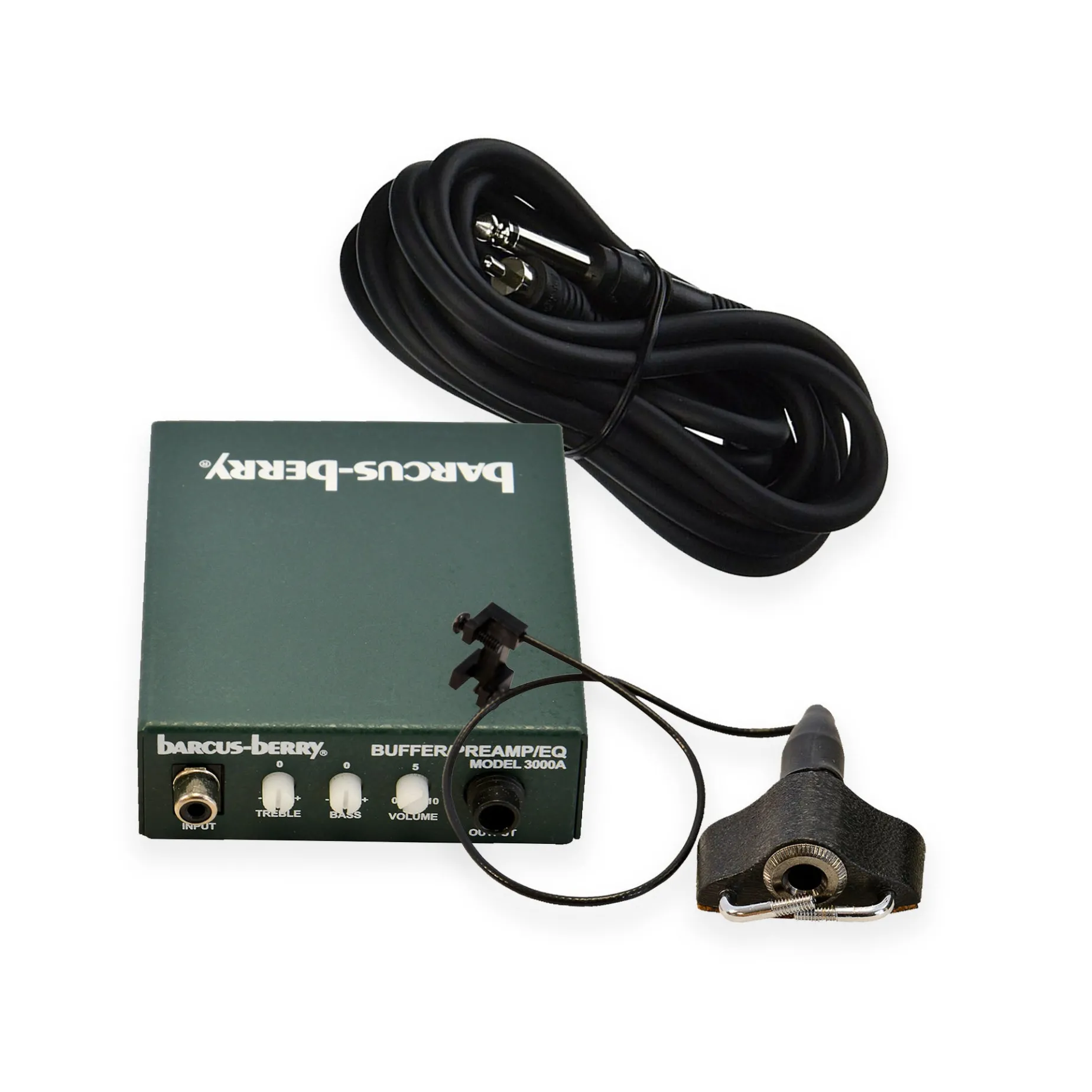

Components Included

• Piezo transducer bridge clamp, with mountable 1/4″ female jack
• 3000A Piezo buffer preamp with EQ
• 1/4″ cable from violin jack to preamp

Specifications for the 3000 Piezo Buffer Preamp with EQ

• Input (EQ Flat) Input Interface = RCA unbalanced
• Input Impedance = 2.2 Meg Ohms Maximum Input Level = 2.0 vrms
• Output (EQ Flat, Volume Max) Output Interface = 1/4″ unbalanced
• Output Impedance = 2K Ohms THD = .008% @ 1kHz Noise = -92dBu S/N = 100dBu
• Bass = +/- 12dB @ 50Hz Treble = +/- 12dB @ 10kHz Frequency Response = 5Hz – 30kHz (+/- 1dB)
• Power Supply Power Source = 9 Volts @ 380 Microamps
• Battery Life = Approximately 1,000 hours
